24 bit A/D converter.
	ProFlash upgradeable firmware.

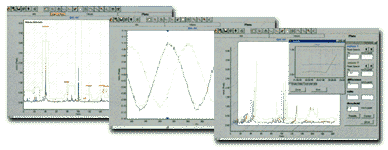

	MAS™ Windows based software.
	CE Compliant.
	512 Kilobyte non volatile memory. (Approx 400,000 samples)
	4.3"x2.3" (100mmx60mm) LCD screen.
	Long-life Nicad battery pack.
	RS232 Interface with cable.
	3 Year Warranty (on instrument only).

Temperature monitoring has long been recognized as one of the most useful tasks performed with portable data acquisition instruments. At the same time temperature monitoring is often viewed to be a basic and unexciting task, only to be performed with instruments that are likewise basic, boring and even outdated. Not any longer... The MMS3000 Series of instruments will change the way you approach temperature measurement and recording. With an easy-to-navigate menu system, 4 or 6 temperature input channels, compatibility with the four most common thermocouple types, and a large LCD to easily read current and historical data, the MMS3000 will become your first choice for temperature measurement and recording. The MMS3000 allows you to take up to 9,999 samples in a single session, at a maximum interval of 60 hours between samples. The result is a test that can last for weeks without the need to touch anything. All these features are provided at a price that is low even when compared with simple chart recorders. You'll never have to worry about pen and paper refills again. There are times when measuring temperature alone can leave you second-guessing about critical conditions in your machinery or facility. Monitoring temperature in combination with a second, third and even a fourth process variable can often reveal so much more than temperature conditions alone. The MMS3000 Model T6V4 adds this extra capability by providing 2 extra thermocouple channels to be used simultaneously with up to 4 channels of DC voltage measurement, up to 6 channels in any mix can be measured at a time. Windows based software for flexible data manipulation. Producing a variety of graphs and printout options.

	User Manual
	Product Specification PDF Document
	Software/Firmware

ITEM	SPEC	REMARKS
	Model: MMS3000-T6V4 6 Temperature Channels Incorporating 4 Voltage Channels
RANGE
T Type Thermocouple	-418 to +743 ºF (-250 to +395 ºC)	Operating temperature range is determined by operating range of thermocouple
E Type Thermocouple	-418 to +1823 ºF (-250 to +995 ºC)
J Type Thermocouple	-346 to +2183 ºF (-210 to +1195 ºC)
K Type Thermocouple	-418 to +2498 ºF(-250 to + 1370 ºC)
Voltage	?5 VDC and ?30 VDC (User Selectable)	Differential Inputs
Common Mode Range	?30 VDC (Voltage Channels only)	Voltage allowed between channels & input ground
RESOLUTION
Temperature	Above -148 ºF (-100 ºC): 0.1 ºF or ºC	Effective resolution will decrease below -148ºF (-100ºC)
	At or Below -148 ºF (-100 ºC): 1 ºF or ºC
Voltage	?5 VDC: 200 µV (.0002 V); ?30 VDC: 1 mV (.001 V)
ACCURACY
Temperature	Above -148ºF (-100ºC) ?0.1% of reading ?0.9ºF (0.5ºC)	Total measurement accuracy depends on MMS3000-T6V4 and thermocouple accuracy.
	At or Below -148ºF (-100ºC) ?1.0% of reading ?0.9ºF (0.5ºC)	Only MMS3000-T6V4 accuracy is given here.
Voltage	?5 VDC: ?0.3% of reading ?.6mV	MMS3000-T6V4 temperature 73 ?9°F (23 ?5°C), charger off.
	?0 VDC: ?0.3% of reading ?.0mV	See Appendix 3 of Owners Manual
Common Mode Error	0.1% of common mode voltage
MINIMUM SAMPLING INTERVAL
	# of channels selected (User-selectable) Voltage Channels Only (Seconds) Temp or Temp & Voltage (Seconds) 1 0.2 0.2 2 0.3 0.3 3 0.4 0.5 4 0.5 0.6 5 0.7 6 0.8	Sampling interval is programmable from 0.2 seconds to 60 hrs. Note: Minimum time to scan all selected channels - not each channel.
DATA LOGGING
Data Storage	512 kilobytes ?approx. 400,000 individual samples	Non-volatile memory (with battery back-up). # of Samples depends on # of Data Sets and Recordings.
Data Storage Format	Up to 50 named DATA SETS	User-specified name entered from keypad
	Up to 50 RECORDINGS per data set	Each recording has unique time/date stamp
	Up to 9,999 SAMPLES per recording	Each sample contains data for all selected channels
Data Set Name	Up to 16 alpha-numeric characters
DISPLAY
	LCD with graphic capabilities
Resolution	240 x 128 pixels
Viewing Area	4.3" x 2.3" (110mm x 60mm)
Backlight	Electro-luminescent
PROFLASH
	Allows internal firmware to be upgraded via built-in RS232 port	Download firmware upgrades via the Internet
COMMUNICATIONS
	RS232	15kV ESD Protected. Cable with DB9 connector included
Baud Rate	9600, 19200, 57600 bits per second	Automatic Baud Rate Selection
INPUT TERMINATION
	Sockets accept miniature thermocouple twin blade plug	Blades spaced 5/16" (7.9mm) center-to-center
INPUT IMPEDANCE
	Greater than 100k Ohms	Terminal-to-terminal
ISOLATION
	50VDC minimum	Between temperature inputs and MMS3000-T4 outputs e.g. RS232 port. No isolation between input channels.
BATTERY
Type	Custom Nickel-Cadmium pack
Voltage	7.2 Volts nominal
Capacity	1500 mAh nominal
Operating Time	13 hrs with backlight off, 7 hrs backlight on - nominal
CHARGER AND CONDITIONER
	Built-in dual rate charger ?Automatic and Manual control	AC Adapter included (13.5 ?1.5 VDC, 1A output)
Fast Charge Rate	0.7A nominal	2.5 hours for complete charge nominal
Discharge Rate	0.5A nominal	Combats NiCad battery memory effect
MECHANICAL
Size	9.7"W x 6.1"L x 3.0"H (247mm x 154mm x 75mm)	Including protective boot
Weight	4.4lb (2kg)	Including protective boot and strap
ENVIRONMENTAL
Temperature/Humidity
Operating	32°F to 122°F (0°C to 50°C) / 70% RH	Non-condensing
	32°F to 86°F (0°C to 30°C) / 80% RH	Non-condensing
Storage	14°F to 140°F (-10°C to 60°C ) / 95% RH
EMC	EN50081-1	Radiated and conducted emissions
	EN50082-1	ESD Immunity and RF field immunity (EMI).
The manufacturer reserves the right to modify specifications without prior notice.
