Thermal Vision Infrared Camera
 LAIRD-S270
LAIRD-S270

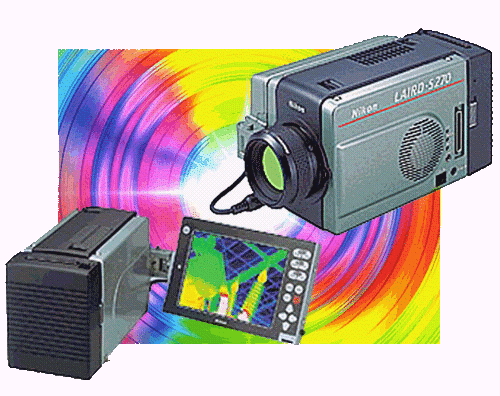

Compact, Battery-Operated Infrared Camera



Because the LAIRD-S270 is small, light, and battery-operated,
it can be carried anywhere and allows picture-taking even while moving.
A variety of options are available, including a removable
LCD monitor/controller, data storage on memory cards,
and comprehensive data analysis.
As always, superb image quality is a Nikon tradition.



A Nikon-developed 270,000-pixel IR CCD senses the slightest deviation in temperature, resulting in images with exceptional picture quality.
High-speed thermal measurement with a frame rate of 1/60 sec. (30 Hz) and the ability to measure temperatures from -20°C to +250°C.
Measuring a mere 98 (W) x 120 (H) x 165 (D) mm (3.9 x 4.7 x 6.5 in.) and weighing only 2.5kg (5.5 lb.) (camera body), it is small and light enough be carried anywhere.
Optional battery pack, 5.6-inch LCD monitor/controller, and memory card drive (Flash ATA Type I/II) for enhanced portability.
Optional thermal image analysis software and measurement report creation.
Easy connection to personal computers via opional PC card or optional PCI board for grabbing real-time images.
Optional lenses: tele, wide and close-up.



CLICK HERE!Boiler CLICK HERE!IC board
CLICK HERE!Water storage columns CLICK HERE!Nighttime monitoring




Specifications System Configuration Option
