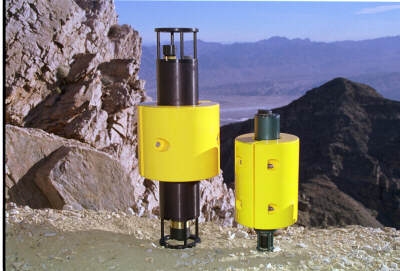

RBS-1 and RBS-2 Baseline Stations

Baseline Stations serve as the reference points for positioning in long baseline systems.  They are used in diver survey, ROV survey, and AUV navigation applications.  At the beginning of a job, these stations are deployed near the corners of an underwater work site.  Positions are measured with sub meter accuracy by interrogating the baseline stations and measuring the signal run time.  Normally, a set of three stations is used to obtain high quality, unambiguous position fixes.  However, you can use either two or four stations in some cases.  The stations are usually mounted several meters off the sea floor, anchored by a line, and buoyed by their flotation collar.  Rigid mounting on a pole is preferred in high surge applications and when centimeter accuracy is required.  All baseline stations support an automatic baseline survey (also known as sonar sing around).  This eliminates the need to place stations precisely. Select our RBS-0, RBS-1 or RBS-2 depending on your range, depth, battery life, and system configuration requirements.   Baseline Station Specifications

Model RBS-0 RBS-1 RBS-2
Applications surveys of smaller areas general oceanic surveys and navigation extended mission and very deep surveys and navigation; data acquisition and remote control applications
Size 203 mm L x 56 mm D 419 mm L x 76 mm D 670 mm L x 127 mm D
Frequency of operation 34 kHz - 42 kHz 34 kHz - 42 kHz; other frequencies optional 34 kHz - 42 kHz; other frequencies optional
Operating hours per charge 8 hours 20 hours 130 hours
Battery charge time 12 hours 3 hours 18 hours
Depth rating options 66 meters 66 to 1000 meters 66 to 1000 meters standard; up to 6000 meters optional
Maximum working range 250 meters 500 to 1000 meters 500 to 1000 meters; up to 4000 meters optional
Surface station support no yes yes
Zero power sleep mode no yes yes
In-field software upgrades no yes yes
Sensor data collection, remote control, telemetry no no yes
Included accessories charger charger, flotation collar, data cable charger, flotation collar, data cable
Price $1600* $3600* $6200*

  * Prices are for customers in the United States & Canada. Pricing for overseas customers is 10% higher to account for the higher cost of customer support.
