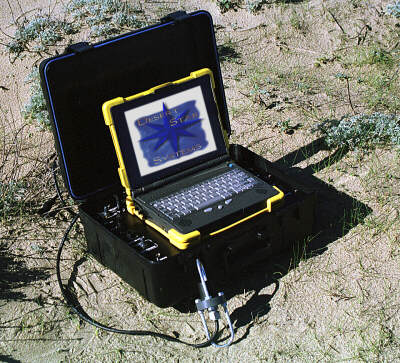

STM-10 Splash Proof Surface Station With Amrel Rocky Jr. Notebook Computer

Our surface stations support both short and long baseline tracking and navigation applications.  These stations can also be used to retrieve data from subsurface instrumentation (MANTA systems), to communicate and supervise divers, and for a variety of other applications.  The surface stations require a Windows 95 or Windows NT computer, which is used for data display and control.  You must also purchase DiveBase™, surface station tracking and navigation software. Model STM-10 is designed for small boat and vessel of opportunity jobs.  This station is housed in a rugged watertight carrying case which also accommodates the Rocky™ ruggedized notebook computer or another suitable notebook.  The STM-10 powers the notebook computer and can run for 20 hours on its internal rechargeable batteries.  It can also be powered by 95 to 250 V AC line supply. The lower cost model STM-1 is housed in a small sheet metal chassis that either slides into a drive bay of a PC or may be used as a tabletop device.  The STM-1 is only suitable for dry environments.   Surface Station Specifications

Model STM-1 STM-10
Applications tracking, data acquisition communication and remote control; for installation in dry environment tracking, data acquisition, communication and remote control; for small boat and vessel of opportunity applications
Size 216 mm x 146 mm x 38 mm 470 mm x 343 mm x 195 mm
Frequency of operation 34 kHz - 42 kHz standard; other frequencies optional 34 kHz - 42 kHz standard; other frequencies optional
Power options 12 V DC (boat or PC power) or 95 - 250 VAC (line voltage) internal battery or 95 - 250 VAC
Operating hours per charge n/a 20 hours, including power to notebook
Battery charge time n/a 18 hours
Maximum range 500 to 1000 meters 500 to 1000 meters
Sonar transducers up to three cable mounted "over the side" transducers up to three cable mounted "over the side" transducers
Chassis sheet metal chassis for desk-top use or mount in PC drive bay watertight rugged carrying case; also accommodates and powers notebook computer
Computer requirement Windows 95 or NT machine; DiveBase surface station software Windows 95 or NT notebook mounted on instrument panel; optimized for Rocky ruggedized notebook; DiveBase surface station software
Included accessories power supply, data cable, three "over the side" sonar transducers on 16 m cables (32 m optional) power cord, data cable, three "over the side" sonar transducers on 16 m cables (32 m optional)
Price $3600* $6000*

  * Prices are for customers in the United States & Canada. Pricing for overseas customers is 10% higher to account for the higher cost of customer support.
