The system TV has been
designed for the operation
and data processing at a tubing line.
Tasks
- Data logging and storage of the
relevant parameters of a tubing line
- Monitoring of the tubing line, alert
signal processing
- Daily Logbook
- Graphic display of the trends
- Support of technology analysis
- Statistic evaluation of the measured
values
- Issue of the manufacturing and
delivery certificate
Structure
The system comprises an Pentium-PC in an
industrial quality, the interface to the
measuring devices, the printer as well as a special software.
It is a multi-task and real time software.
The data logging is continued even if the computer is used
for other tasks, e.g. input of new
manufacturing data
or analysis of former manufacturing
periods.
Operation
The operation can easily be done:
The system is Windows based. The operator's
interface is adapted to the special needs of tubing lines. The data
analysis can be done by a number
of tools, for example zoom functions.
Further investigations can be made by means of data base systems, for
example Excel.
Advantages
- The operator of the tubing line is
supported substantially.
- The certificate of delivery is
generated automatically on the base of a 100% control. The
quality of the manufacturing can be shown to the customer in a
convincing way.
- Parameters and status of the tubing
line are monitored continuously.
- The technology analysis is assisted
by the automatic data logging and the data analysis
in an essential way.
References
Shandong Sunny Industry Group, Jinan, P.
R. China
Technische Glaswerke Ilmenau, Germany
Medical Glass Tuimazy, Russia
GE Quartz Europe, Geesthacht, Germany
Telux Weisswasser, Germany
Heraeus Amersil, USA
KIMMON Quartz, Japan
|

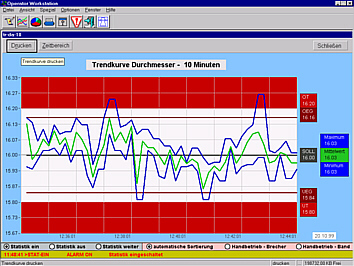

Example of the screens: The trend
of the diameter average, maximum and minimum are shown for a time period
of
10 minutes.

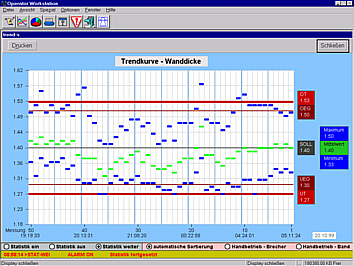

The thickness profile has been
measured off-line.
Average and sliding are shown for
each sample.
The statistic computation
provides the characters and the histograms as well.
|
