- to measure the length of glass containers,
- to control the tolerances,
- to sort out faulty containers,
- to process the measured values and provide statistics.
Measuring Principle
The device determines the gap between the upper edge of the container and the straight edge. Its prolongation rests on the conveyor belt and compensates the change in its thickness. A row camera measures the gap. The camera is linked with a microcomputer which carries out all the functions of measuring. In addition, it provides the selection of faulty containers and statistics.
Structure
The modular structure guarantees a simple arrangement on the conveyor belt. It is easy to maintain and can be combined with other testing systems.
Service and Operation
Particular emphasis was placed on operator convenience:
- a telecentric system ensures that changes in the position of the container on the conveyor belt do not have any impact on the result of measurement,
- the installation can be done easily and an adjustment is not required even after job changes,
- a rugged row camera from our own production is in accordance with the requirements of the device; some displays make service easy to handle.
- Length of the containers: from 40 ... 350 mm (standard)
- Speed of measurement: up to 600 /min
- Accuracy of measurement: 0.05 mm
- no wear
- high speed measurement
- no handling required

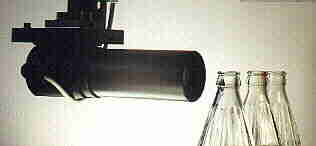

Camera of the length measuring
device LM(C)

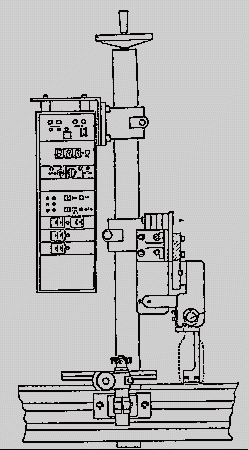

Installation of the container
length mesuring device
is carried out at the side of the
conveyer belt.
