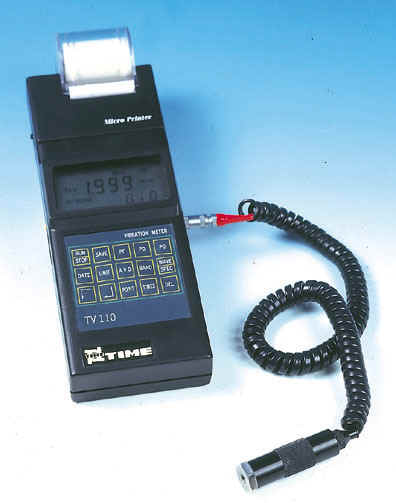

TV110 HAND-HELD VIBRATION TESTER

TV100 vibration analyzer is an extremely light and potable low cost instrument specifically designed for on site preventative maintenance in your plant or workshop.It measures overall vibration level and provides a frequency analysis of rotating machinery.This easy to use instrument requires very little operator training.The integral/removable printer supplies a hard copy of results for interpretation by your engineering department.The TV110 offers more than just accurate readings and easy operation.For more in-depth analysis of a problem the frequency spectrogram is available at the push of a button,giving you enough information to identify problems correctly.

Main Function

• Measurement of displacement:peak to peak value [mm]
• Measurement of velocity:effective value [m/s]
• Measurement of acceleration:peak value [m/ss]
• Large memory of 100 results and 10 frequency spectrograms
• Includes a hand-held accelerometer probe with a removable magnetic base
• Rechargeable
• Easy-to-read LCD display all functions,parameters,and spectrogram

Technical Data

• Acceleration: peak value 0.1 to 200 [m/s²]
• frequency range: 10 to 500Hz ;10 to 1KHz ;10 to 10kHz
• Velocity: RMS. 0.01 to 20.0 [m/s]
• frequency range: 10 to 500Hz ;10 to 1KHz
• Displacement:peak to peak from 0.001 to 2.0 [mm]
• frequency range: 10 to 500 Hz; Operating temperature: 0-45°C
• Power supply: 4×1.25V NiCd rechargeable cell
• Dimensions: 270×86×47mm
• Weight: 650g
