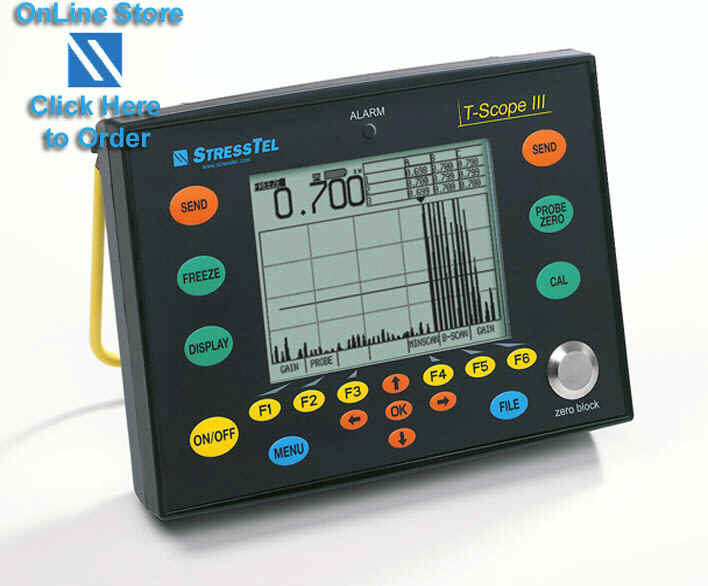

Expand
your thickness inspection capabilities with the StressTel T-Scope III with
waveform display. With
the largest A-scan waveform display in its class, the T-Scope III lets you
quickly and accurately confirm backwall echoes and verify the digital thickness
of critical components. Thickness readings and waveforms can be stored in
linear, grid, or boiler data files to generate direct-print reports or to
down-load to inspection data management programs like StressTel's GRIDWARE 2000. The
T-Scope III also has a dual-multiple test mode allowing measurement of heavily
corroded walls through coatings. You can customize the T-Scope III to your
inspection by choosing one, two, or all three options. |
|
|
|

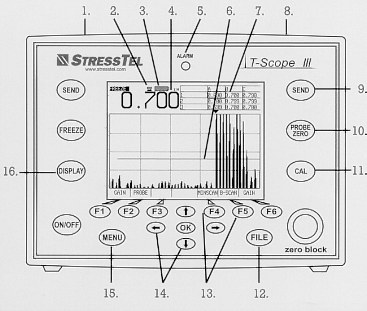

1. |
Transducer
Connector |
|
2. |
Coupling
Indicator |
|
3. |
Battery
Life Indicator |
|
4. |
Digital
Thickness |
|
5. |
Minimum
thickness Alarm LED |
|
6. |
Gates |
|
7. |
Data
Recorder |
|
8. |
RS-232
Connector |
|
9. |
SEND
for Recording Readings |
|
10. |
Transducer
PROBE ZERO |
|
11. |
Thickness
CALibration |
|
12. |
Data
FILE Access |
|
13. |
User
Definable Function Keys |
|
14. |
Navigation
Keys |
|
15. |
MENU
Access |
|
16. |
DISPLAY
Range and Delay |
|
 |
|
|
|
|
|
|
|
|
|
Display |
|
|
|
Graphic
Waveform LCD:
Viewing Area (w x h):
Pixel Density (w x h):
Update
Rate:
Adjustable
contrast and backlight
|
1/4
VGA
Total--3.8 x 2.8 in/96 x 71mm
A-Scan--3.8 x 1.9 in/96 x 48mm
320 x 240
4 Hz
|
|
|
Description |
|
|
|
|
Unit Size: |
7.5
inches wide (191 mm)
5.5 inches high (140 mm)
2.2 inches deep ( mm)
2.5
lbs. with batteries (1.14 kg) |
|
Case: |
Shock
resistant plastic. |
|
Keyboard: |
Weather resistant keypad. |
|
|
|
|
Operating
Temperature |
|
|
|
|
|
+
10 t +120 F/- 10 to +50 C |
|
|
|
Power Supply |
|
|
|
5
"AA" Alkaline or NiCad batteries Interchangeable and easy-to-access
Operating time: 60 hours w/o backlight. |
|
|
|
Operation |
| |
|
Measuring Range: |
0.020
to 20.00 in/0.50 to 500 mm depending on transducer and materials. |
|
Gates:
|
Two adjustable
gates to select proper echo(es)/measurement area and to ignore unwanted signals. |
|
Velocity
Range: |
39,000
to 393,700 in/sec (1000 to 9,999 m/sec) |
|
|
|
|
| |
Ultrasonic
Specifications
Measurement Modes:
Gain
Range:
Gain
Steps:
Linearity:
Calibration:
V-Path Correction:
Display
Range:
Display
Delay:
Display Resolution:
Operating Modes:
Measurement Update: |
dual, single, dual-multiple
0 to 85 dB
1 dB with automatic gain control
Dual Element +/- .002 in/.05 mm Single Element +/- .001 in/.025 mm
1 and 2 point thickness
Automatic
0.115 to 20.00 in./2.9 to 500 mm
-0.500 to 5.000 in/-12.7 to 127 mm
0.001 in/0.01 mm
Standard, Minimum, Capture,
and B-Scan
Standard-4 Hz Minimum Capture and B-Scan-u to 32Hz |
|
|
Data Recorder
|
|
|
|
Data
Recorder |
Standard:
2,000
thickness readings
Expanded:
40,000
thickness readings and up to 1000 waveforms |
|
File
Structures: |
Standard:
Grid
Expanded: Grid, Custom Linear, and Boiler |
|
Alphanumeric
ID:
Utility Sofware:
|
16
character file names
16 character location I.D.'s
64 character file descriptions
GRIDWARE 2000 (WINDOWS 95/98/ME/NT) |
|
|
|
|
T-Scope
III Kit Contents |
|
|
|
* |
T-Scope
III Ultrasonic Thickness Gauge. |
|
* |
Dual element
transducer with Cable. |
|
* |
Operation Manual. |
|
* |
5
"AA" Alkaline Batteries |
|
* |
Ultrasonic
Couplant |
|
* |
Hardshell
Transport Case |
|
* |
Softshell
Carrying Bag |
|
* |
Operation
Card |
|
* |
Certificate
of Calibration |
|
* |
Serial
PC Cable |
|
* |
Upgrade
Utility CD |
|
|
|
|
Warranty |
|
|
The
T-Scope III is manufactured in an ISO9001 facility. The T-Scope III has a full two-year warranty on parts and labor excluding batteries, transducer and cable. Specifications subject to change without notice. |
|
|
|
