ISONIC MIA Bond Mapping
System
General

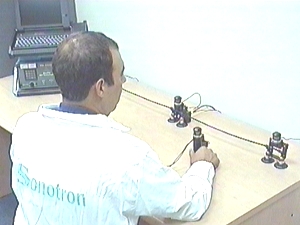

ISONIC MIA Bond Mapping System
(ISONIC) is computerized equipment for bond testing using an output of MIA 2500
Bond Tester (bond tester) as a source of bond characterization signal in each
current location of manually manipulated MIA 2500 Probe (bond probe). The
special features of ISONIC are:
Fully objective bond testing data
acquisition, storing and representing provided by
 |
Non mechanical monitoring
of bond probe coordinates on the object under test |
|
Monitoring and on-line
indicating of coupling between bond probe and object under test |
|
Un-violation of
traditional bond probe manipulation |
|
On-line imaging of
current bond probe location on the object under test |
|
On-line imaging of bond
probe actual trace and breaks caused by missing of coupling |
|
On-line imaging of color
coded map of object under test |
|
On the spot creating and
storing fully objective inspection data files |
|
 |
Intelligent postprocessing of stored
bond testing data provided by
|
Automatic detection and
counting of defects areas and measuring their coordinates |
|
Printing fully objective
inspection report and accompanying pages |
