Coating Thickness Meters MEGA-CHECK FE / FE-S / FN:

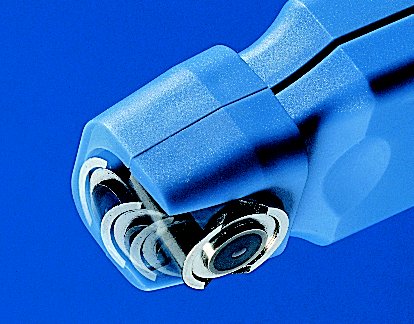

Mega-Check FN Sonde
Swinging probe


The world's first pocket-size Coating Thickness Meters with a swinging probe.

NEW:   Simply and easy to operate. With only one key you can scroll through the whole operation menu.

MEGA-CHECK FE / FE-S measure according to the magnetic induction technique non-conductive coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films on iron and steel.

MEGA-CHECK FN measures with a twin-function probe according to the magnetic induction and eddy current technique. Measurements can be performed: On iron and steel all non-conductive coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films. On non-ferrous metals (aluminium, bronze, brass, copper, non-magnetic steel) non conductive coatings (paint, varnish, plastics, anodizing on aluminium).

Features and Technical Data:

Function:

MEGA-CHECK FE

MEGA-CHECK FE-S

MEGA-CHECK FN
Measurement of paint, varnish, plastics and galvanizing on iron and steel

X

X

X
Measurement of insulating coatings (paint, varnish, plastics, anodizing) on non-ferrous metals

-

-

X
Measuring Range

FE 0 - 5000 µm

FE 0 - 5000 µm

FE 0 - 5000 µm
NFE 0 - 2000 µm

Resolution:
< 100 µm   : 0,1 µm
>   100 µm : 1,0 µm
> 2000 µm : 0,01 mm

X

X

X
Accuracy:
< 100 µm:        ?1 µm
100-1000 µm:   ?1%
1000-2000 µm: ?3%
> 2000 µm:      ?5%

X

X

X
Display: LCD 3?- digits

X

X

X
Power Supply: Hydrid battery

X

X

X
Two-point calibration

X

X

X
Automatic switch off

X

X

X
Conversion µm - mils

X

X

X
Data Logger

-

100 readings

100 readings
Interface RS 232

-

X

X
Size

108 x 48 x 38 mm

108 x 48 x 38 mm

108 x 48 x 38 mm
Weight

100 g

100 g

100 g



Optionals:
?/td> Standard Paper Printer DUO-PRINT
?/td> Data transmission program TRANSFER
?/td> Data evaluation program STAT-5
