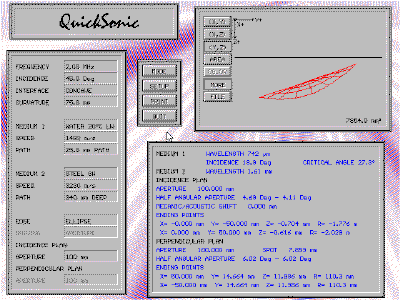

Quick Sonic allows to calculate the aspherical front face geometry of transducers that have to focus to a precise point, with a fixed incidence, through a flat, cylindrical or toroidal interface.These transducers are called Fermat Transducers.

This calculation can be done with the lateral resolution objective as an input parameter

Quick Sonic Software Aspherical Surface transducer
  • Aspherical surface definition
  • Lateral resolution simulation
