CIVA is a beam simulation software developed by CEA - France (Commissariat ?l'?ergie Atomique)

This software allows very exhaustive simulation including a very wide range of configurations

The above example shows the emitted beam of a phased array transducer with mechanical and electronic beam steering.

A beam profile and A-Scan are extracted from the simulated beam

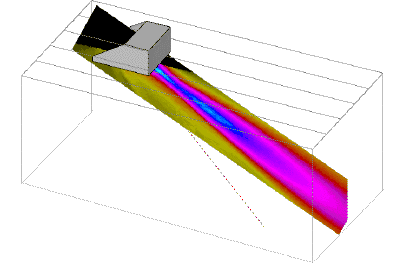

3D view

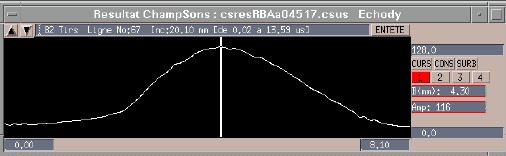

Beam profile

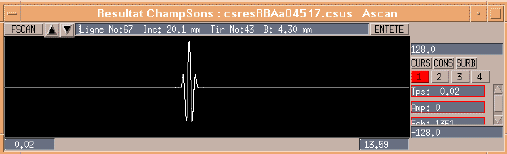

A scan
