DS-1 And DS-3 Diver Stations

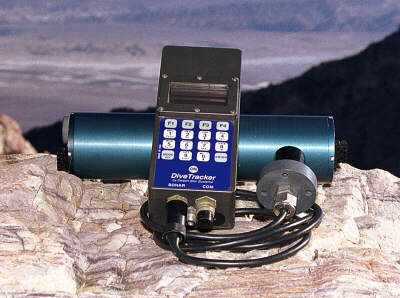

These multi-function stations are used for diver navigation, diver tracking, e-mail style communication, and electronic observation recording.  Model DS-1 features a lighted graphic LCD display and a rugged magnetic keypad.  Model DS-3 is for zero-visibility applications.  Beep signals are audible to the diver through a headset.  The diver can enter commands through a large cable-mounted push-button.   Diver Station Specifications

Model DS-1 DS-3
Size 216 mm x 89 mm x 55 mm 419 mm L x 76 mm D
Applications precision surveying including observation recording; defense against large and furious sharks zero-visibility navigation and surveying
Operating frequency 34 kHz - 42 kHz standard; other frequencies on request 34 kHz - 42 kHz standard; other frequencies on request
Operating hours per charge 6 hours 18 hours
Battery charge time 1.5 hours 3 hours
Depth rating options 66 to 300 meters 66 to 1000 meters
Maximum working range 500 to 1000 meters 500 to 1000 meters
Data entry 16-key magnetic keypad push-button
Data display graphic LCD with light beep signals through headset
Zero-visibility operation no yes
Diver navigation & tracking yes yes
Observation recording yes, using custom data forms position recording only
Diver to diver communication yes, e-mail style no
Surface to diver communication yes, e-mail style basic signals to diver only
Included accessories charger, data cable, magnetic pointer, sonar transducer headset, charger, data cable, sonar transducer
Price $4800* $4800*

  * Prices are for customers in the United States & Canada. Pricing for overseas customers is 10% higher to account for the higher cost of customer support.
